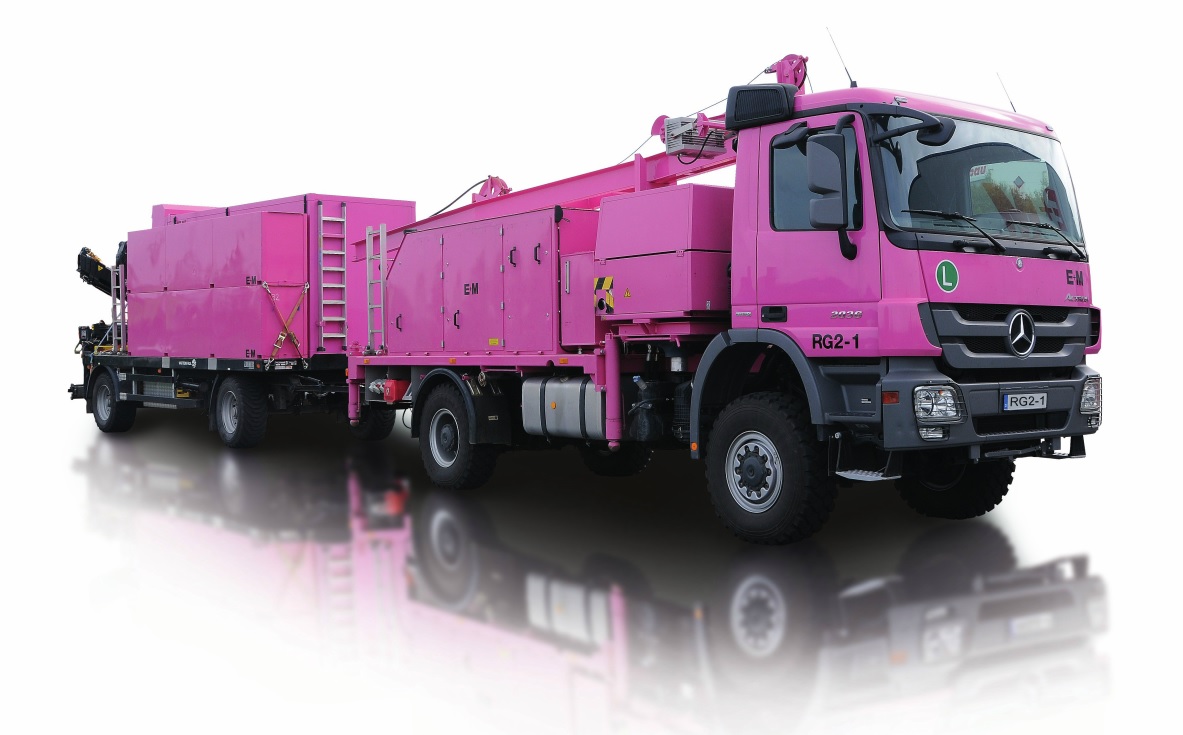

Regeneration device

All indicated data are maximum values. Those and the equipment components are options. It might also be possible that they are mutually exclusive.



Regeneration device

Technical data:
Dimensions and weights
Overall length [m] 9,50
Overall width [m] 2,59
Overall height [m] 3,90

HD water pump, mech. driven
Make   KAMAT
Nominal delivery rate [l/min] 194
Operating pressure, max. [bar] 525
Driving power, full load [kW] 220

Hose-reel, electr. driven, mounted onto frame
Make:   E+M
Hose capacity [m] 300
in case of Parker extreme pressure hose   DN 20

Deck crane, hydr. driven, mounted onto frame
Make   Palfinger
Typ PK27002 HPLS (6E)
Lift moment [kNm] 264,0
additional rope winch [kN] 24,5
Rope length and rope diameter [mm] 65, 10

Combined compressor / generator unit
Manufacturer   CompAir
Type DLT 0703
Delivery quantity at 7 bar [m³/min] 7,6
Continuous power rating 3-phase [kVA] 12

Diesel engine (vehicle)
Manufacturer   Mercedes Benz
Type Actros 3341
